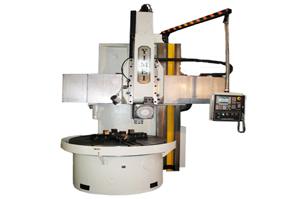

- CK5112EOur vertical lathe adopts resin sand casting process and artificial heat processing, which make the vertical lathe more durable....

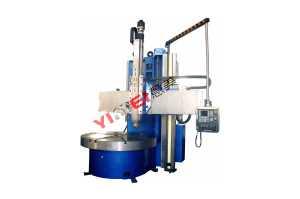

- CK5116EBased on the experience for design and manufacturing of small and large vertical lathes, our small CNC vertical turret lathe is a combination of modern mechanics, electrics and hydraulics. To meet modern machining requirements, this machine is equipped with hi...

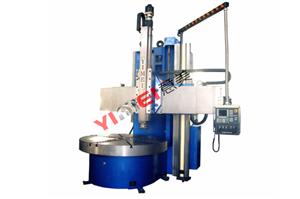

- CK5123E1. This Vertical lathe with single column has characters like high precision, stability and rigidity. It is used to turn tools such as hard alloy, high speed steel machine ferrous metal, non-ferrous metal and part of non-metal parts. Our Chinese CNC vertical l...
- CK5126ESingle column CNC vertical lathe not only has common turning function but also can cut with constant linear velocity and threading. This single column CNC vertical lathe is mainly used for machining large and heavy-duty workpiece, such as coarse and fine machi...
- CK5120EBased on the experience for design and manufacturing of small and large vertical lathes, our small CNC vertical turret lathe is a combination of modern mechanics, electrics and hydraulics. To meet modern machining requirements, this machine is equipped with hi...
Single Column CNC Vertical Lathe (Economical Type)
Description:
CNC single column vertical lathe integrates hanging button station, electrical cabinets and lathe together. With the adoption of advanced super audio quenching process and quenching T ram affixed plastic rails, crossbeam of the vertical lathe is fully protected and durable. As a Vertical Turning Lathe Supplier, our beam clamping mechanism adopts hydraulic mechanism. The beam guide and ram guide of single column vertical lathe are handled by supersonic frequency induction hardening. The quenching process T type ram surface is equipped with sticking plastic and vertical lathe beams with closed protection. The beaming clamping mechanism uses hydraulic pressure clamp and hydraulic release.Features:
1. The vertical lathe of single column vertical lathe adopts resin sand casting process. it is durable with the artificial heat processing.2. Main drive adopts 16 machinery variable speeds, which improves the maximum torque output, reduces the gear stress in main transmission box and adapts to the overloaded power cutting. As for vertical tool rest, five angle tool set or square tool set is optional.
3. The lubrication parts lubricate automatically.
4. As a Vertical Turning Lathe Supplier, our electrical components of single column vertical lathe have high quality. The CNC devices adopt Siemens 802C or 802D system. Other systems are optional according to your needs. Vertical lathe adopts high precise grinding gear, which has low noise and can be operated stably under high speed.
5. As a Vertical Turning Lathe Supplier, our company offers the following optional configuration for single column vertical lathe: rolling working platform, Germany Mecano button station, heightening lathe, prolonged ram, square ram, etc. you can use our machine with cutting tool equipped if you have the complete accessory configuration.
6. The following clearances are adjustable: main drive belt tension, main shaft bearing clearance, vertical ram, beaming clamping force and nut clearance.
