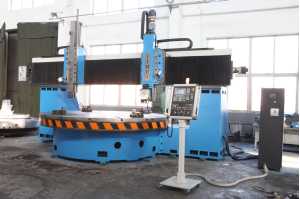

CK5280 CNC Vertical Lathe

Description of China Lathe Machine with Fixed Column

The machine tool of China vertical lathe with double column is suitable for processing discoid components like conical surface, circular surface and combination complicated surfaces, etc. the beam guide and ram guide are handled by supersonic frequency induction hardening. The beam guide and the chromium tungsten manganese guide plate are match with the beam white steel protection and walking board, so this machine is durable.

Advantages of China Lathe Machine with Fixed Column

1. to realize the large torque with thread cutting and constant linear turning function, the worktable uses 2 or 4 gear mechanical + AC variable frequency or DC stepless speed regulating.
2. Siemens 828D system (optional Fanuc OI-TD) with 100% manual operation.
3. THK Japan, high-precision ball screw and imported bearing support.
4. The low voltage electrical parts of China Lathe Machine with Fixed Column adopt the ABB international brand and CNC equipment using Siemens 828D (Fanuc 0i-TD by option). The servo motor and servo driver of China vertical lathe with double column both utilize Siemens brand.
5. All of the functional parts and electrical parts are featured with high grade, high reliability and high precision. The grinding gear has low noise and stable operation.
6. This China Lathe Machine with Fixed Column can be put into use if only being equipped with cutting tool.
7. Our company offers you perfect after sales service.

Parameters of China Lathe Machine with Fixed Column

Fixed beam CNC vertical lathe	Unit	CK5280
Max. turning diameter	mm	8000
Worktable diameter	mm	6000/7200
Max. height of work piece	mm	4000/4500
Max. weight of work piece	t.	150/250
Max torque of worktable	Nm	100000
Variable speed stage of worktable		2
Variable speed range of worktable	r/min	0.2-20/0.1-16
Max cutting force of right tool post	mm	120
Max cutting force of left tool post	mm	100
Servo feeding range	mm	0.1-2000
Horizontal travel of tool post	mm	4350
Vertical travel of tool post	mm	1600/2000/2500
Feeding stage of left tool post		Stepless
Fast moving speed of right tool post	mm/min	4000
Max swivel angle of tool post		+/-30
Positioning accuracy	mm	0.03
Repeatability positioning accuracy	mm	0.015
Machining accuracy		IT7
Main electric motor power	KW	DC110/132
Guide way form of worktable	Static pressure
Weight of machine(about)	t.	270
