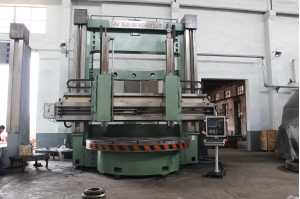

CK5240 CNC Vertical Lathe
Description of China DVT Series Lathe Machine
Our company researched and developed this DVT series vertical lathe independently. With the adoption of advanced fittings from home and abroad, our machine has the characters of strong cutting, workbench overweight loading, high dynamic and static precision, safe and reliable performance, long life and high efficiency.
Features of DVT Series Vertical Lathe
1. Our China DVT series lathe machine integrates machine, electric and hydraulic technologies as a whole unit.
2. Our machine adopts 828D or 840D CNC system Fanuc OI-TD system and 100 % manual operation functions.
3. To realize constant linear speed turning, our machine adopts 2 gear mechanical transmission + DC motor stepless speed regulating with large torque.
4. High quality castings are treated by thermal aging treatment.
5. Guide on the crossbeam of DVT series vertical lathe is sticking with chromium-tungsten manganese plate.
6. The left tool holder of China DVT series lathe machine is conventional type and the right is CNC type. You can choose both CNC type according to your needs.
7. The guide way of worktable uses constant current oil supplied by constant motor which is accurate and stable: hydraulic oil adopts refrigerator constant coolant which effectively reduces the variant of worktable to ensure precision machining of worktable.
8. Each sliding lubrication parts of DVT series vertical lathe has auto lubrication pump to supply oil in fixed quantity and time.
9. high precision screw lead and imported bearing support
10. Our China DVT series lathe machine carries out JB/T9934.2-1999CNC vertical lathe technical condition.
11. Gearbox uses high precision grinding gear.
12. Its standard configuration of DVT series vertical lathe contains the following parts: crossbeam white steel protection and walking platform.
13. Large quantities of functional components of China DVT series lathe machine are imported: servo motor, drive, hydraulic, bearng, lead screw, planetary reduce, etc.
Parameters of DVT Series Vertical Lathe
Term
|
Unit
|
CK5240
|
Max. turning diameter
|
mm
|
4000
|
Worktable diameter
|
mm
|
3600
|
Max. height of work piece
|
mm
|
2500/3150/4000
|
Max. weight of workpiece
|
t.
|
32/50
|
Max. cutting force of right tool post
|
KN
|
50
|
Max. cutting force of left tool post
|
KN
|
40
|
Max. total cutting force
|
KN
|
90
|
Max. torque of worktable
|
KN
|
100
|
Stage number of variable speed of worktable
|
Two gears
|
Variable speed range of worktable
|
r/min
|
0.5-63
|
Feeding stage number
|
AV servo stepless
|
Feeding range
|
mm/min
|
0.1-2000
|
Horizontal travel of tool post
|
mm
|
2200
|
Vertical travel of tool post
|
mm
|
1250/1600/2000
|
Crossbeam moving speed
|
mm/min
|
380
|
Tool post rapid moving speed
|
mm/min
|
4000
|
Max. swivel angle of worktable
|
。
|
+/-30
|
Positioning accuracy
|
mm
|
0.03
|
Repeatability positioning accuracy
|
mm
|
0.015
|
Machining accuracy
|
IT7
|
Main electric motor power
|
KW
|
DC75
|
Overall size
|
mm
|
5840×5040×4380
|
Weight of worktable
|
t.
|
92/96
|
